5" DTH hammer

FAST DTH hammer , match DHD350R, COP54, QL50, MISSION50, BR shank.
Availability:
Quantity:
Inquire Add to Basket

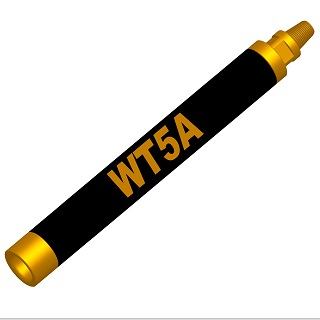

  • WT5A
  • WTE
  • Mining or construction blasting hole bigger than 135mm.
  • Structure is simple, not easy to damage.

Product Parameter

Length

1105mm

DTH Hammer O.D.

Φ126mm

Weight

67Kg

Work Pressure

1.0～2.5MPa

PIN Thread

API  2 3/8"REG │ 2 3/8" IF │ 3 1/2"REG

Impact Frequency

28Hz at 1.7Mpa

Recommended Rotation Speed

25～35r/min

Air Consumption

7～19 m3/min

Drill Bit Dia.

Φ135～φ155mm

Shank

DHD350 COP54 MISSION50 QL50 SD4
