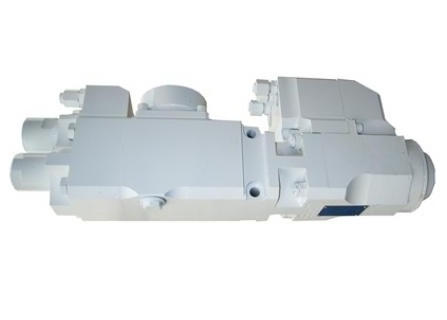

Hydraulic Rock Drill WTRD400

Availability:
Quantity:
Inquire Add to Basket

  • Mining, Construction, Tunneling
  • Environmental, Effective, Low cost

Product Description

Impact Energy (J)

400

Impact Rate (Hz)

35-45

Impact Pressure (MPa)

16-21

Impact Flow (L/min)

80

Rotation Torque (N.m)

500

Rotation Pressure (MPa)

15-18

Rotation Flow (L/min)

50-70

Rotation Speed (r/min)

0-400

Hole Diameter (mm)

50-102

Weight (Kg)

150

Dimension L*W*H (mm)

1013*140*350
