Product Description

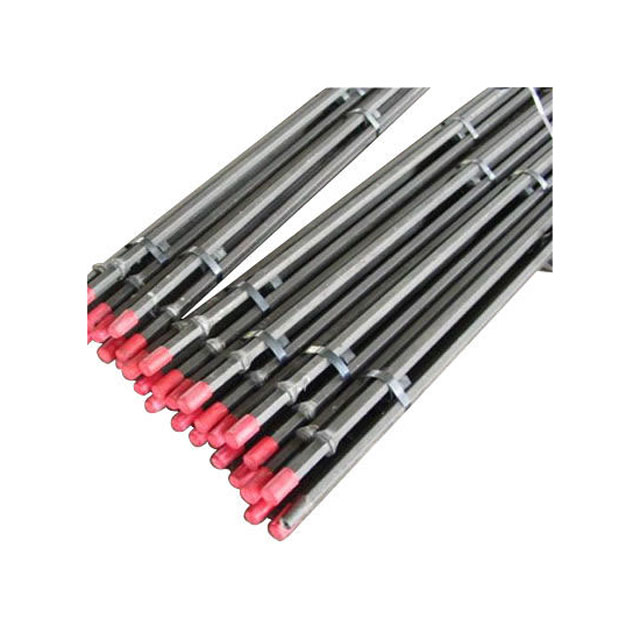

Titan tapered drill rod has nice quality and is primary used on construction, quarrying and ore mine.

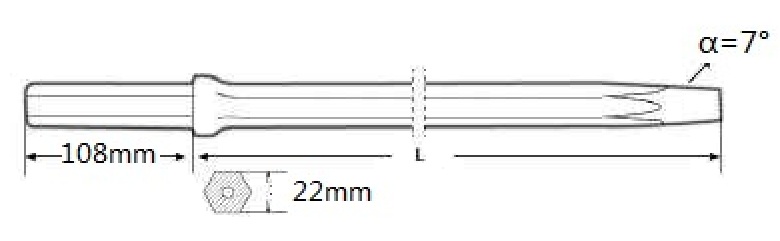

Size: Hex19mm, Hex22mm, Hex 25mm or OEM
Length | Shank | Head Dia. | Weight | WTE P/N. |
mm | mm | Kgs | ||
600 | 108×22 | 7 | 1.82 | WTG722-05 |
700 | 108×22 | 7 | 2.12 | WTG722-06 |
800 | 108×22 | 7 | 2.42 | WTG722-07 |
900 | 108×22 | 7 | 2.73 | WTG722-08 |
1000 | 108×22 | 7 | 3.03 | WTG722-09 |
1100 | 108×22 | 7 | 3.33 | WTG722-10 |
1200 | 108×22 | 7 | 3.64 | WTG722-11 |
1300 | 108×22 | 7 | 3.94 | WTG722-12 |
1400 | 108×22 | 7 | 4.24 | WTG722-13 |
1500 | 108×22 | 7 | 4.55 | WTG722-14 |
1600 | 108×22 | 7 | 4.85 | WTG722-15 |
1700 | 108×22 | 7 | 5.15 | WTG722-16 |
1800 | 108×22 | 7 | 5.45 | WTG722-17 |
1900 | 108×22 | 7 | 5.76 | WTG722-18 |
2000 | 108×22 | 7 | 6.06 | WTG722-19 |
2100 | 108×22 | 7 | 6.36 | WTG722-20 |
2200 | 108×22 | 7 | 6.67 | WTG722-21 |
2300 | 108×22 | 7 | 6.97 | WTG722-22 |
2400 | 108×22 | 7 | 7.27 | WTG722-23 |
2500 | 108×22 | 7 | 7.58 | WTG722-24 |
2600 | 108×22 | 7 | 7.88 | WTG722-25 |
2700 | 108×22 | 7 | 8.18 | WTG722-26 |
2800 | 108×22 | 7 | 8.48 | WTG722-27 |
2900 | 108×22 | 7 | 8.79 | WTG722-28 |
3000 | 108×22 | 7 | 9.09 | WTG722-29 |
3100 | 108×22 | 7 | 9.39 | WTG722-30 |
3200 | 108×22 | 7 | 9.7 | WTG722-34 |
4000 | 108×22 | 7 | 12.12 | WTG722-39 |
4500 | 108×22 | 7 | 13.64 | WTG722-44 |
5000 | 108×22 | 7 | 15.15 | WTG722-49 |
