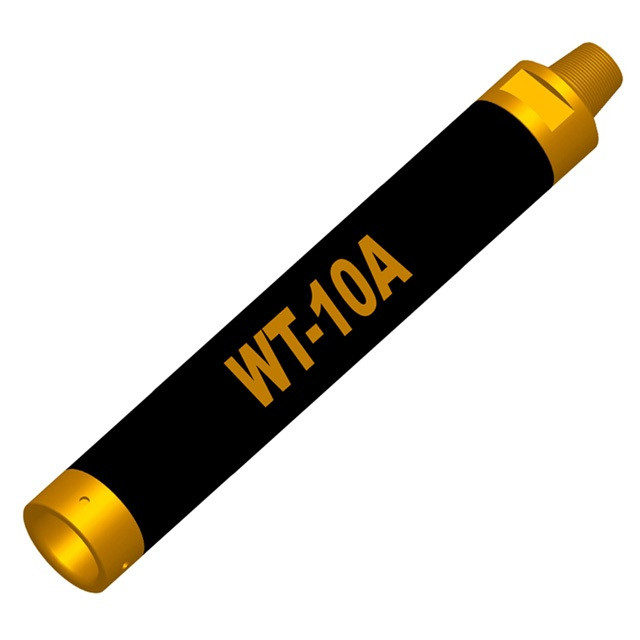

WT10A
WTE
Mining or construction blasting hole bigger than 254mm.
Structure is simple, not easy to damage.
Product Parameter
1. Economic air consumption and oil consumption.
2. Common parts, stable quality, easy to repair.
3. Low cost, drill fast.
Length | 1535mm |
DTH Hammer O.D. | φ226mm |
Weight | 309Kg |
Work Pressure | 1.0～2.5Mpa |
PIN Thread | 5 1/2" REG |
Impact Frequency | 20Hz at 1.7Mpa |
Recommended Rotation Speed | 15～25r/min |
Air Consumption | 22～65 m3/min |
Drill Bit Dia. | φ254～φ310mm |
Shank | NUMA100 |
