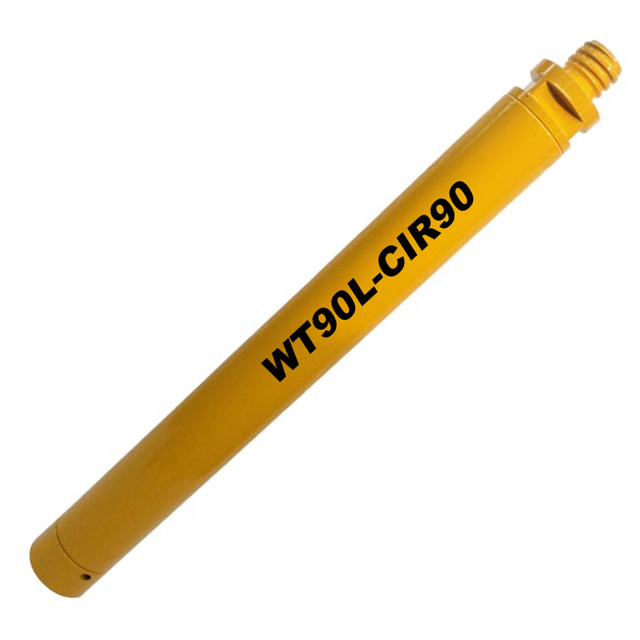

WT90L-CIR90
WTE
Mining or construction blasting hole bigger than 90mm.
Structure is simple, not easy to damage.
Product Parameter
1. Economic air consumption and oil consumption.
2. Common parts, stable quality, easy to repair.
3. Low cost, drill fast.
Length | 869mm |
DTH Hammer O.D. | φ81mm |
Weight | 23Kg |
Work Pressure | 0.7～1.4MPa |
PIN Thread | T48x10 |
Impact Frequency | 16～18 |
Recommended Rotation Speed | 25～40r/min |
Air Consumption | 6～10 m3/min |
Drill Bit Dia. | φ90～φ110mm |
Shank | CIR90 |
