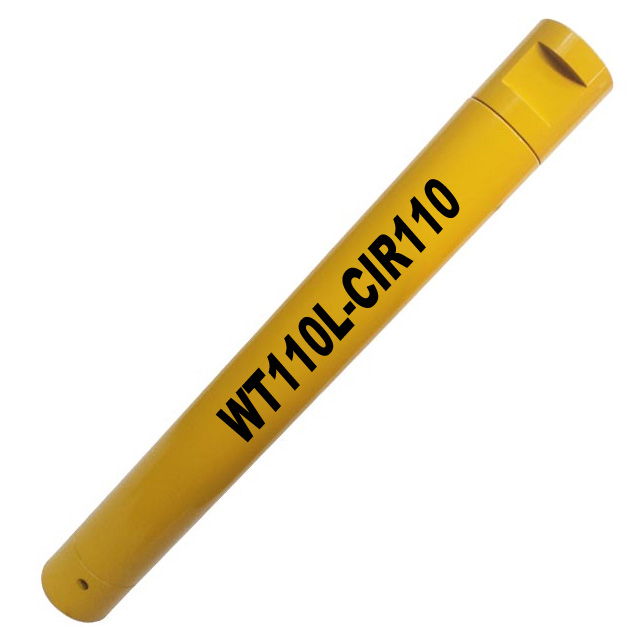

WT110L-CIR110
WTE
Mining or construction blasting hole bigger than 110mm.
Structure is simple, not easy to damage.
Product Parameter
1. Economic air consumption and oil consumption.
2. Common parts, stable quality, easy to repair.
3. Low cost, drill fast.
Length | 817mm |
DTH Hammer O.D. | Φ98mm |
Weight | 33Kg |
Work Pressure | 0.7～1.4MPa |
PIN Thread | PIN2 3/8"REG BOX |
Impact Frequency | 16～18 |
Recommended Rotation Speed | 25～40r/min |
Air Consumption | 8～12 m3/min |
Drill Bit Dia. | Φ110～φ150mm |
Shank | CIR110 |
