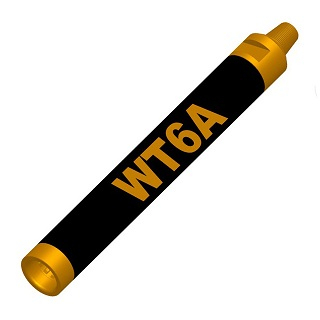

6" DTH hammer

FAST DTH hammer , match DHD360, COP64, QL60, MISSION60, BR shank.
Availability:
Quantity:
Inquire Add to Basket

  • WT6A

  • WTE

  • Mining or construction blasting hole bigger than 152mm.

  • Structure is simple, not easy to damage.

Product Parameter

Length

1238mm

DTH Hammer O.D.

Φ143mm

Weight

100Kg

Work Pressure

1.0～2.5MPa

PIN Thread

API 3 1/2"REG

Impact Frequency

25Hz at 1.7Mpa

Recommended Rotation Speed

20～30r/min

Air Consumption

9～26 m3/min

Drill Bit Dia.

Φ152～φ203mm

Shank

DHD360 COP64 MISSION60 QL60 SD6
