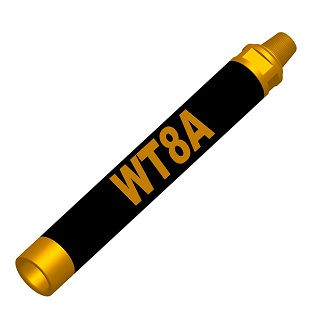

8" DTH hammer

FAST DTH hammer , match DHD380, COP84, QL80, MISSION80, BR shank.
Availability:
Quantity:
Inquire Add to Basket

  • WT8A

  • WTE

  • Mining or construction blasting hole bigger than 195mm.

  • Structure is simple, not easy to damage.

Product Parameter

Length

1355mm

DTH Hammer O.D.

Φ180mm

Weight

173Kg

Work Pressure

1.0～2.5MPa

PIN Thread

API 4 1/2"REG

Impact Frequency

22Hz at 1.7Mpa

Recommended Rotation Speed

15～25r/min

Air Consumption

12～28m3/min

Drill Bit Dia.

Φ195～φ254mm

Shank

DHD380 COP84 MISSION80 QL80 SD8
