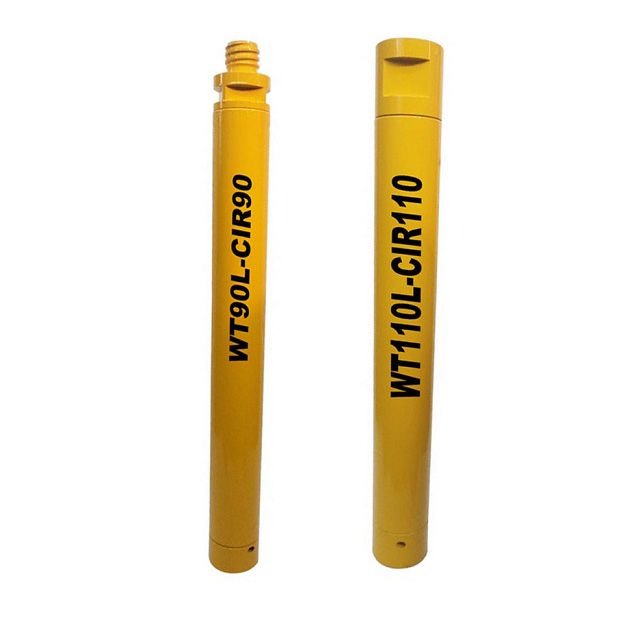

CIR76, CIR90, CIR110,CIR130, CIR150, CIR170
WTE
construction, geothermal, water well drilling, tunneling
high effectiveness and quality
Product Description
Material: High quality steel
Manufacture Process: precise CNC machining + automatic heat treatment device + advanced technology
Shank Optional: any common DTH shank CIR50 CIR60 CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
Color: Black, Yellow, Orange or Customized
Product Parameter
Regular Products are as following, OEM\ODM is optional:
Shank | Length | Top sub Thread | O.D. | Weight | Drill bit Dia. | Working Air Pressure | Air Consumption |
mm | mm | Kgs | mm | Bar | m³/min | ||
CIR50 | 628 | F32*8PIN | 44 | 5 | 50 | 4-10 | 4-8 |
CIR60 | 777 | F42*8PIN | 53 | 7.5 | 60 | 4-10 | 3-7 |
CIR65 | 745 | F42*10PIN | 61 | 13 | 65 | 4-10 | 6-10 |
CIR70 | 811 | F48*10PIN | 66 | 13.5 | 76 | 4-10 | 6-10 |
CIR90 | 855 | F48*10PIN | 80 | 22 | 90-120 | 4-12 | 8-12 |
CIR110 | 817 | PIN 2 3/8" REG BOX | 98 | 33 | 110-150 | 6-12 | 8-12 |
CIR130 | 890 | PIN 2 3/8" REG BOX | 112 | 45.85 | 130-175 | 6-12 | 8-12 |
CIR150 | 904 | F70*10 BOX | 136 | 70 | 150-200 | 6-12 | 10-16 |
CIR170 | 1030 | F100*28 PIN | 156 | 96 | 170-250 | 8-14 | 12-18 |
CIR200 | 1058 | F100*28 PIN | 182 | 130 | 200-250 | 8-14 | 16-20 |
