Construction, Overburden Drilling
Product Description

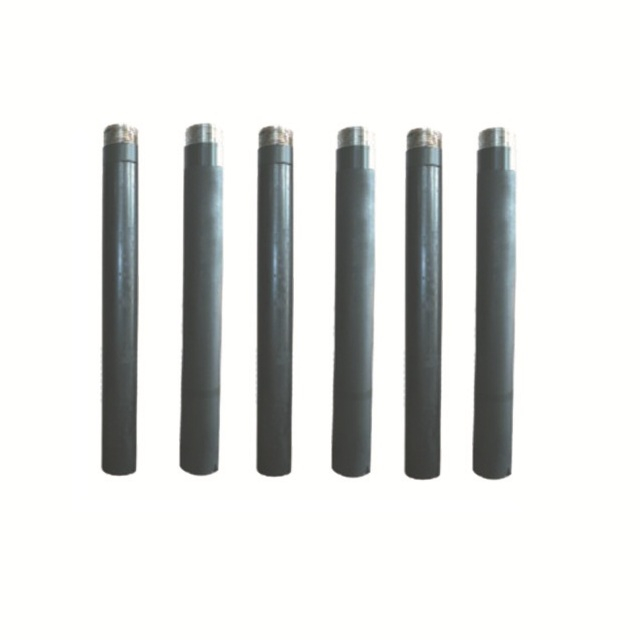

Titan Casing pipe is used on softer soil or rock formation. Usually used together with ODEX or Symmetric Drilling tools.
Outside Diameter: 108mm-508mm(4"-20")
Inner Diameter: 93mm-483mm
Length & Thickness: Customized
Product Parameter
Following is common size, special can be customized:
O.D. | Inner Dia. | Thickness | Length | Weight | Length | Weight | Length | Weight |
mm | mm | mm | mm | kgs | mm | kgs | mm | kgs |
108 | 93 | 7.5 | 1000 | 17 | 1500 | 26 | 2000 | 34 |
114 | 101 | 6.5 | 1000 | 16 | 1500 | 25 | 2000 | 32 |
127 | 114 | 6.5 | 1000 | 18 | 1500 | 28 | 2000 | 36 |
146 | 127 | 9.5 | 1000 | 30 | 1500 | 45 | 2000 | 60 |
168 | 149 | 9.5 | 1000 | 35 | 1500 | 53 | 2000 | 70 |
178 | 159 | 9.5 | 1000 | 38 | 1500 | 56 | 2000 | 76 |
193 | 173 | 10 | 1000 | 43 | 1500 | 65 | 2000 | 86 |
203 | 183 | 10 | 1000 | 46 | 1500 | 69 | 2000 | 92 |
244 | 224 | 10 | 1000 | 56 | 1500 | 84 | 2000 | 112 |
273 | 251 | 11 | 1000 | 69 | 1500 | 103 | 2000 | 138 |
323 | 301 | 11 | 1000 | 82 | 1500 | 124 | 2000 | 164 |
406 | 382 | 12 | 1000 | 114 | 1500 | 171 | 2000 | 228 |
457 | 433 | 12 | 1000 | 129 | 1500 | 194 | 2000 | 258 |
508 | 483 | 12.5 | 1000 | 150 | 1500 | 226 | 2000 | 300 |
