low pressure
WTE
Mining, construction, well drilling, tunneling
Product Description

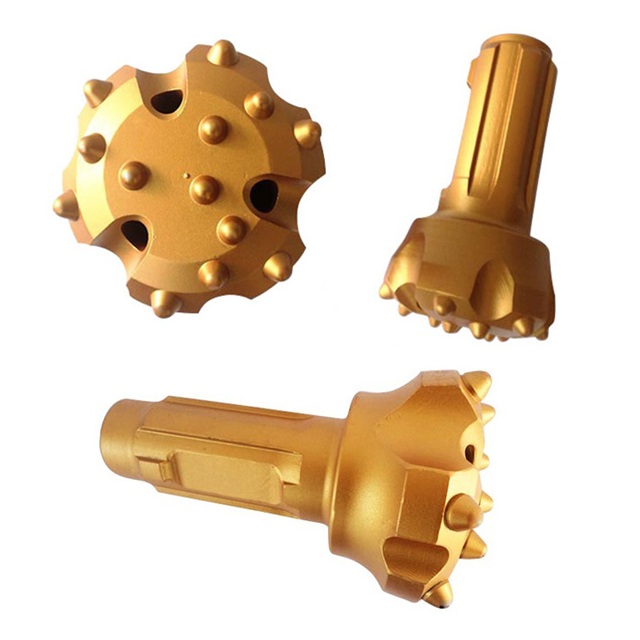

Titan low pressure DTH drill bits
Advantage: Low cost.
Match: Small drill rig + smaller air compressor.
Working Air Pressure: 0.7-1.4Mpa(7-14Bar)
Face type: Convex.
Button type: Sharp.
Product Parameter
Shank | Drill Bit Diameter | DTH hammer No. |
(mm) | ||
CIR50 | 50 | WT50L-CIR50 |
CIR60 | 60 | WT60L-CIR60 |
CIR65 | 65 | WT65L-CIR65 |
CIR76 | 76 | WT76AL-CIR76 |
CIR90 | 90-120 | WT90AL-CIR90 |
CIR110 | 110-150 | WT110BL-CIR110 |
CIR130 | 130-175 | WT130BL-CIR130 |
CIR150 | 150-200 | WT150AL-CIR150 |
CIR170 | 170-250 | WT170AL-CIR170 |
CIR200 | 200-250 | WT200AL-CIR200 |
