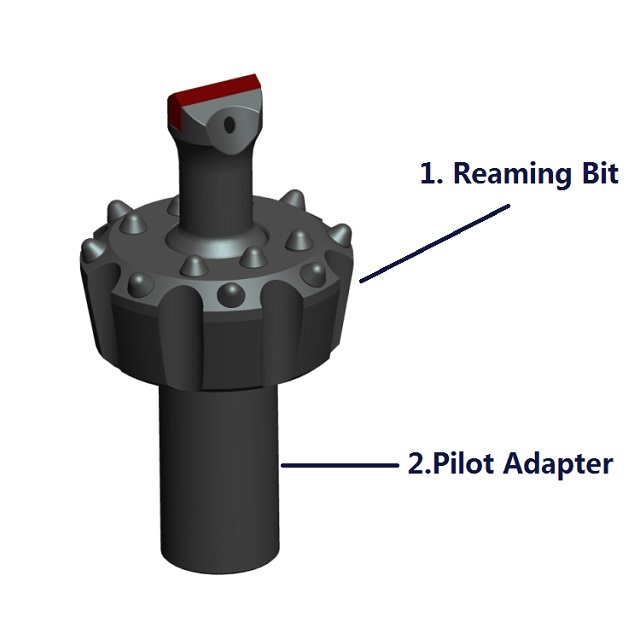

Product Description
Thread sizes: R25, R28, R32;
Reaming diameters: 76mm, 89mm, 102mm, 127mm;
Regular size is as following:
R25 1" R28 1 1/8" | ||||||
Reaming Bits | Diameter | Button size(mm) | Gauge Button Angle | Weight | ||
mm | in | Gauge | Front | Kgs | ||
76 | 3 | 8×10 | 2×10 | 35 | 1.3 | |
89 | 3 1/2 | 8×12 | 4×12 | 35 | 1.7 | |
76 | 3 | 8×9 | 4×9 | 35 | 1.1 | |
89 | 3 1/2 | 8×12 | 4×11 | 35 | 1.7 | |
Pilot Adapters | Head Diam. | Tip size | Thread | - | Weight | |
mm | in | mm | - | Kgs | ||
28 | 1 1/8 | 12×8 | R25 | - | 0.8 | |
28 | 1 1/8 | 12×8 | R28 | - | 0.8 | |
R32 1 1/4" | ||||||
Reaming Bits | Diameter | Button size(mm) | Gauge Button Angle | Weight | ||
mm | in | Gauge | Front | Kg | ||
76 | 3 | 8×11 | 2×10 | 35 | 1.3 | |
89 | 3 1/2 | 8×12 | 4×12 | 35 | 1.7 | |
76 | 3 | 8×9 | 4×9 | 35 | 1.1 | |
89 | 3 1/2 | 8×12 | 4×11 | 35 | 1.7 | |
89 | 3 1/2 | 8×12 | 4×10 | 35 | 1.7 | |
102 | 4 | 8×12 | 4×12 | 35 | 2.7 | |
127 | 5 | 8×14 | 6×12 | 35 | - | |
Pilot Adapters | Head Diam. | Tip size | Thread | - | Weight | |
mm | in | mm | - | Kgs | ||
26 | 1 1/32 | 12×8 | R32 | - | 1.1 | |
40 | 1 37/64 | 15×10 | R32 | - | 1.8 | |
40 | 1 37/64 | 18×10 | R32 | - | 1.8 | |
