WTE
Quarrying, Construction, Tunnel, Mining
Product Description

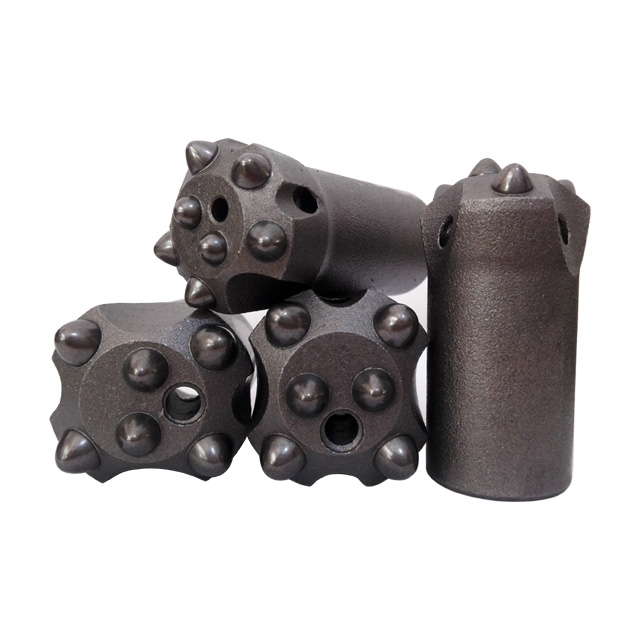

Tapered Button Bit are used in granite and marble quarry, gold mine, railway, tunnel...
Shank type: Hex. 19mm Hex. 22mm Hex. 25mm
Material: High quality carbide and high quality steel
Button Number: 4 - 9 buttons
Face Diameter Size: 30mm-48mm or ODM or OEM
Taper Degree: 4°46', 6°, 7°, 11°, 12°
Product Parameter
Diameter | Quantity×Button Dia. | Angle×Dia. | Item No. | ||
mm | inch | Face | Gauge | Taper Angle×Inner Dia. | |
32 | 1 1/4 | 1×7 | 3×8 | 7°×22mm | WTQ432-722 |
36 | 1 3/8 | 1×8 | 3×8 | 7°×22mm | WTQ436-722 |
38 | 1 1/2 | 1×8 | 3×9 | 7°×22mm | WTQ438-722 |
40 | 1 9/16 | 1×9 | 3×9 | 7°×22mm | WTQ440-722 |
40 | 1 9/16 | 2×8 | 4×9 | 7°×22mm | WTQ640-722 |
40 | 1 9/16 | 2×8 | 4×9 | 7°×24mm | WTQ640-724 |
41 | 1 5/8 | 1×9 | 3×9 | 7°×22mm | WTQ441-722 |
42 | 1 5/8 | 1×9 | 3×9 | 7°×22mm | WTQ442-722 |
42 | 1 5/8 | 2×9 | 4×9 | 7°×22mm | WTQ642-722 |
42 | 1 5/8 | 2×9 | 4×9 | 7°×24mm | WTQ642-724 |
43 | 1 11/16 | 1×9 | 4×9 | 7°×22mm | WTQ443-722 |
44 | 1 3/4 | 1×9 | 4×9 | 7°×22mm | WTQ444-722 |
45 | 1 3/4 | 2×9 | 4×9 | 7°×22mm | WTQ645-722 |
45 | 1 3/4 | 2×9 | 5×9 | 7°×22mm | WTQ745-722 |
45 | 1 3/4 | 2×9 | 5×9 | 7°×24mm | WTQ745-724 |
48 | 1 7/8 | 2×9 | 5×10 | 7°×22mm | WTQ748-722 |
48 | 1 7/8 | 2×9 | 5×10 | 7°×24mm | WTQ748-724 |
48 | 1 7/8 | 3×9 | 6×10 | 7°×22mm | WTQ948-722 |
51 | 2 | 2×9 | 5×10 | 7°×22mm | WTQ751-722 |
51 | 2 | 2×9 | 5×10 | 7°×24mm | WTQ751-724 |
51 | 2 | 3×9 | 6×10 | 7°×22mm | WTQ951-722 |
57 | 2 1/4 | 2×10 | 5×10 | 7°×22mm | WTQ757-722 |
57 | 2 1/4 | 2×10 | 5×10 | 7°×24mm | WTQ757-724 |
57 | 2 1/4 | 3×10 | 6×10 | 7°×22mm | WTQ957-722 |
