WTE
Quarrying, Construction, Tunnel, Mining
Product Description

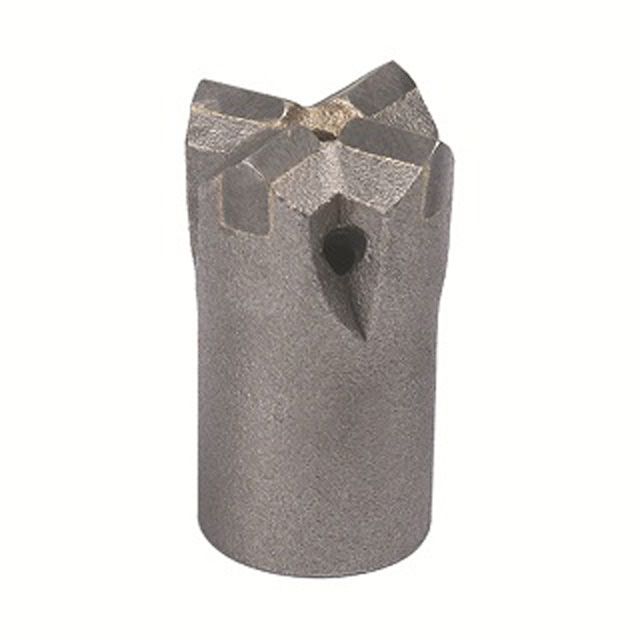

Titan Tapered Cross drill bit is usually used on hard and abrasive rock.
Advantage: Cross shape makes drilling fast on the condition of middle twill working section.
They are widely used on quarry, construction drilling and mining.
Bit diameter: φ32mm -- φ45mm
Taper Degree: 4°46', 6°, 7°, 11°, 12°
Shank type: Hex. 19mm Hex. 22mm Hex. 25mm
Material: High quality carbide + high quality steel
Product Parameter
Regular Model as following:
Size | Button Size | Taper Angle×I.D. | Item No. |
mm | mm | ||
32 | 6.5×10.5 | 7°×22mm | WTES32-722 |
34 | 6.5×10.5 | 7°×22mm | WTES34-722 |
36 | 7×11 | 7°×22mm | WTES36-722 |
38 | 7×11 | 7°×22mm | WTES38-722 |
40 | 8×12 | 7°×22mm | WTES40-722 |
42 | 8×14 | 7°×22mm | WTES42-722 |
45 | 8×14 | 7°×22mm | WTES45-722 |
